DPMRA not starting on the DPM Server

The following issue I encountered in our own DPM environment.

When checking the DPM console we found that all jobs were stuck. During investigation we found that the the DPMRA service on the DPM server keeps failing to start.The event log shows countless number of the following errors.

Log Name:      System Source:        Service Control Manager Event ID:      7009 Task Category: None Level:         Error Keywords:      Classic Description: A timeout was reached (30000 milliseconds) while waiting for the DPMRA service to connect.

Log Name: System Source: Application Popup Event ID: 26 Task Category: None Level: Informatio Keywords: Classic Description: Application popup: DPMRA.exe - Application Error : The exception unknown software exception (0x8007000e) occurred in the application at location 0xfd74bccd

There are no other event in the eventlog that indicate why the DPMRA service keeps failing. The DPMRA1.errlog logs gives us a better indication of the root cause.

2430 28D4 02/04 09:31:11.131 03 agentcfg.cpp(475) [0000000000A5CC20] NORMAL Cound not find configuration for DPMRA 2430 28D4 02/04 09:31:11.131 29 dpmra.cpp(125) [0000000000A594D0] NORMAL CDPMRA: destructor [0000000000A594D0]

With help of this Technet forum post we found that this error indicates that one of the registry keys for DPM is missing.

did a procmon trace, and found that the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft Data Protection Manager\Agent\2.0\Configuration is missing ! Which would co-incide with the agent saying "Element not found"

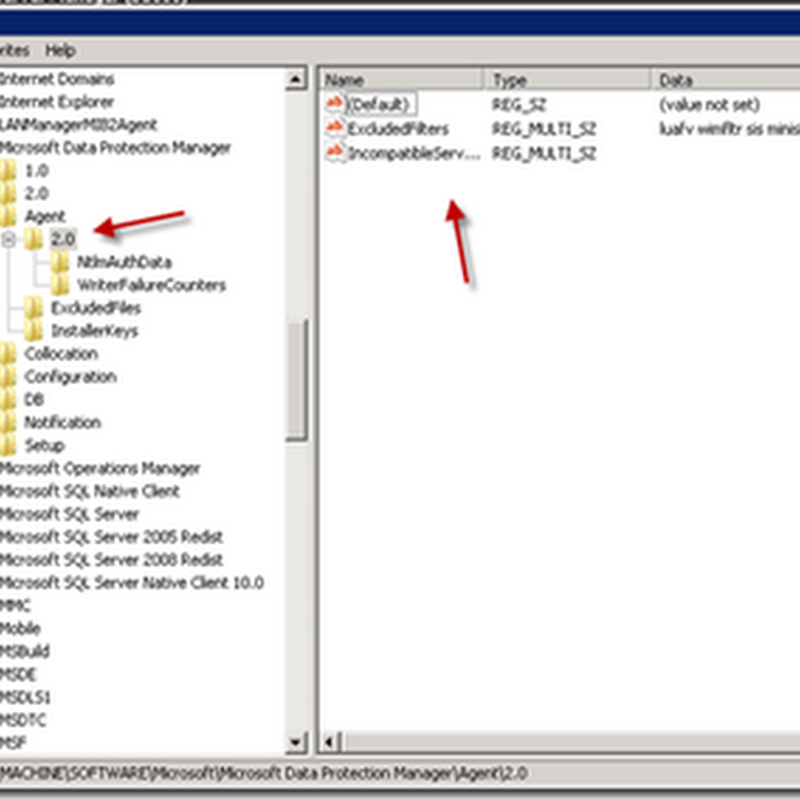

We checked the registry and the key is indeed missing. As shown in the image below.



This is a complex key with a lot of unique information, therefor the best way to fix this issue is by restoring the key. In our case we have a System State back-up available of the server (created at the time the server was working fine).

The steps below show you how to restore the registry key from a System state back-up (VHD). This procedure uses Windows 2008 R2 server. Other OS versions involve different steps

Restore registry key

First we need to locate the System state VHD and mount it. We use the disk manager to mount the VHD.
Mount the VHD (not as read-only)
Assign a drive letter to the volume. In our case Z:
Browse to the directory z:\windows\system32\config and copy the file software to temp directory.
I prefer to perform the next steps on a test system or my laptop instant of the DPM server. Just incase
Open registry editor. Regedit.exe Browse to the Folder HKey_Local_Machine and chosoe
In the file menu choose Load Hive
Browse to the temporary location where you saved the file software and click OK
As key name give a temporary name (temp_restore)
Now you are able to browse to the key we need
We see here that the Configuration key is available.
Next step is to export the key
We need to edit the exported to to the correct hive Make sure the key is referring to HKEY_LOCAL_MACHINE\SOFTWARE
Now back on the DPM server we can import the key.
Now we check if the key is present on the DPM server
And we check if the DPMRA service will start. And check if the DPM jobs are running again.
Last step is a little clean-up. We dismount the VHD We unload the temporary HIVE

Conclusion
The steps above solved the issues for us. Unfortunately not a 100% sure why the registry key disappeared in the first place. We found that the server was under a lot of memory stress a the moment that the issues started (Low on virtual memory). This might cased the issues, but that is not for sure.
